Metal Plate Cement Resistors MPC Series

Back to the Product List

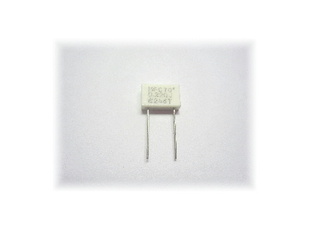

MPC70 Straight

MPC70 Forming

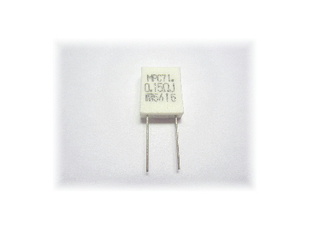

MPC71 Straight

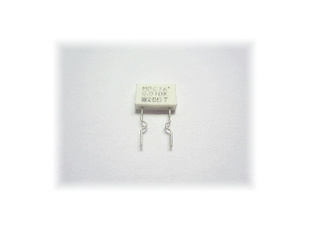

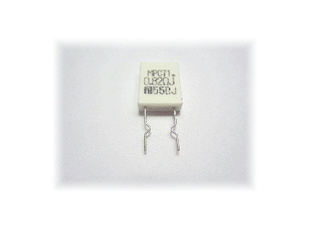

MPC71 Forming

MPC722 (5W+5W) Forming

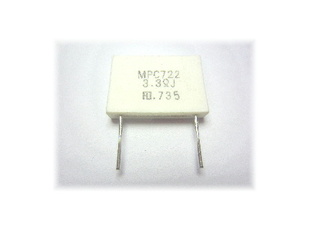

MPC722 (10W) Anti-stress lead type

Name
Metal Plate Cement Resistors MPC Series
Feature
Non-flammable, insulated, safety design and space saving!
Low resistance value and strong to surge current.
Applications
Stabilized power supply, measuring equipment, current detection circuit etc.
Overview
Metal plate resistor that is sealed by non-flammable cement in ceramic case.
 Applications, low resistance value, current detection and control circuit, are pretty good.
For acoustic use, low distortion series are lined up: MPC78, 74, 708, 722(2-lead), 722(3-lead).
MPC that is supported conductor electromotive force and can meet customer spec. (Low resistance value item)
※The Taping has been discontinued.

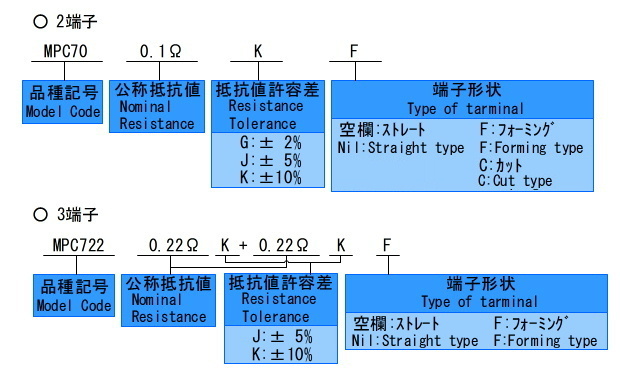

Type composition
Type composition

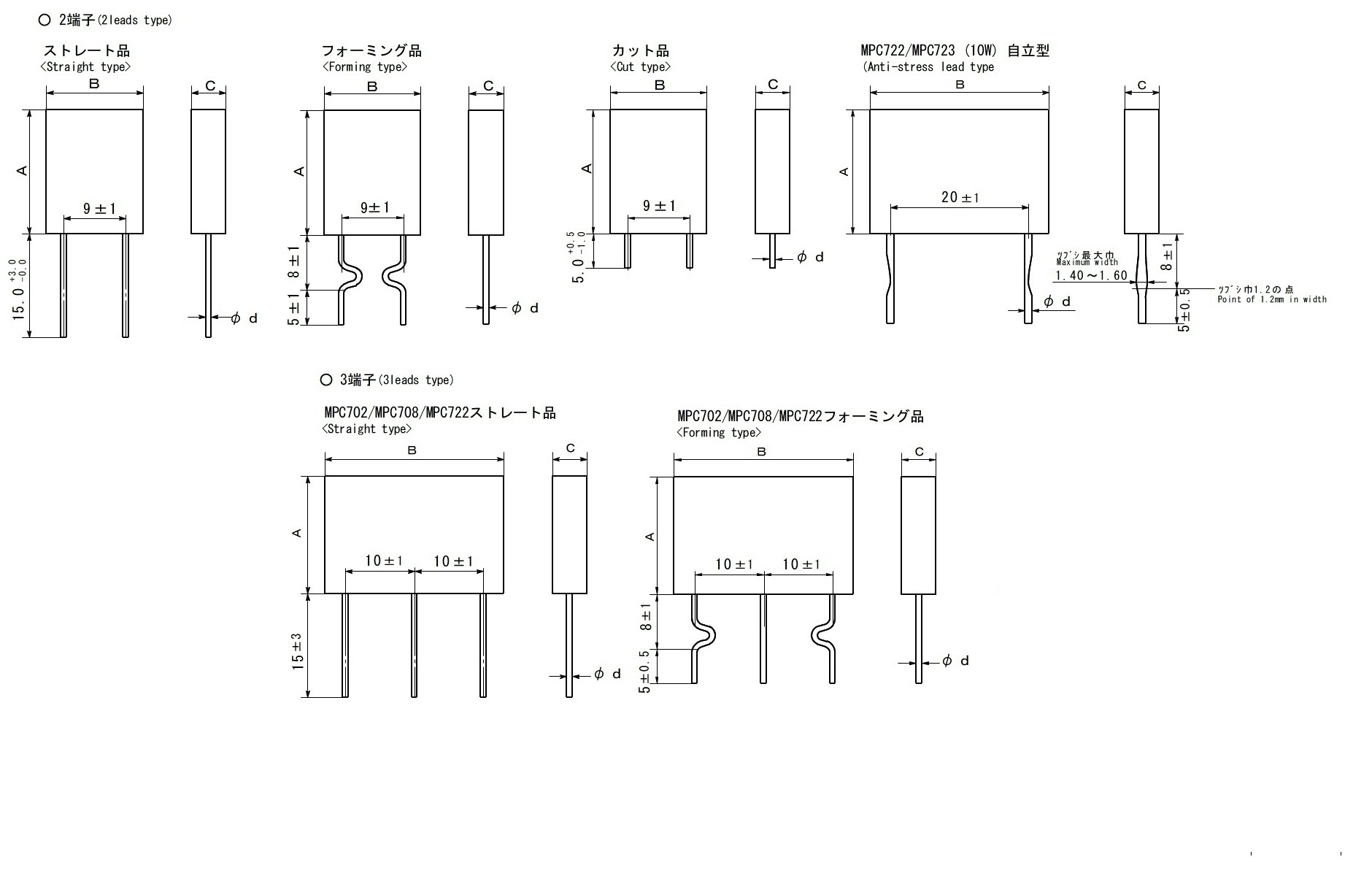

Style
Style
