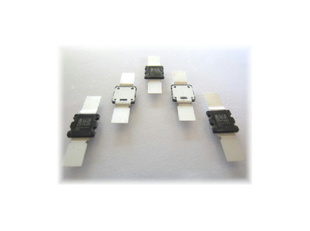

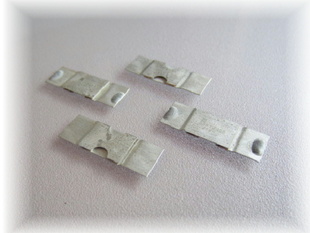

In-laminate bypass diodes

Back to the Product List

Schottky barrier diode (SBM Type)

Schottky barrier diode (SBF Type)

Name
In-laminate bypass diodes
Feature
Thin mold type, schottky barrier diode
Applications
Imbedding into the solar module to eliminate the external junction box
Overview
・Low profile plastic molded package(SBM Type) with heat spreader, 0.75mm thick
・Lowforward voltage schottoky Diode
・Compliant to European RoHS
・Available in emboss tape and reel package

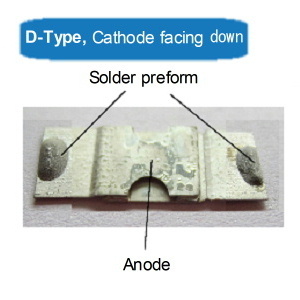

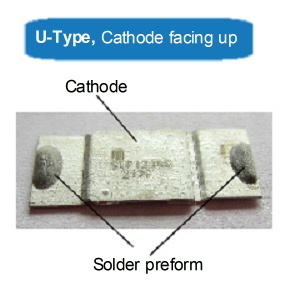

・Available with solder preformed leads
お問い合わせはこちら
　 　 　 　

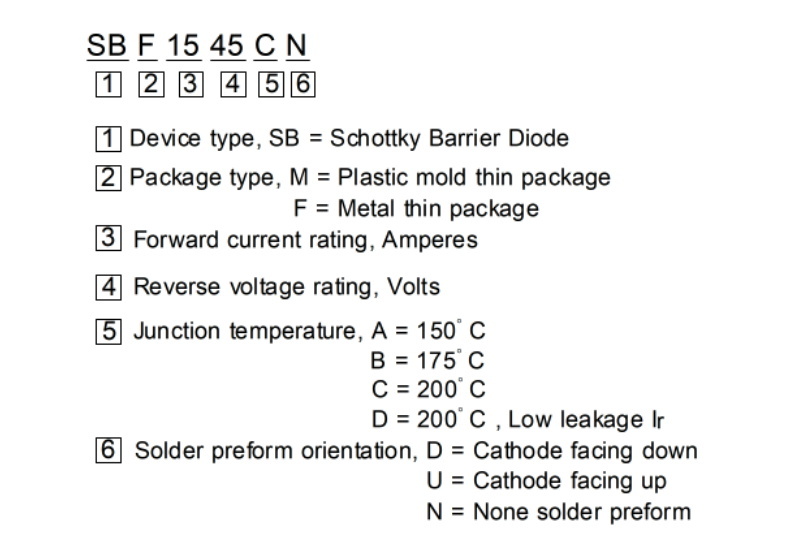

Product name composition
Product name composition
　 　 　 　

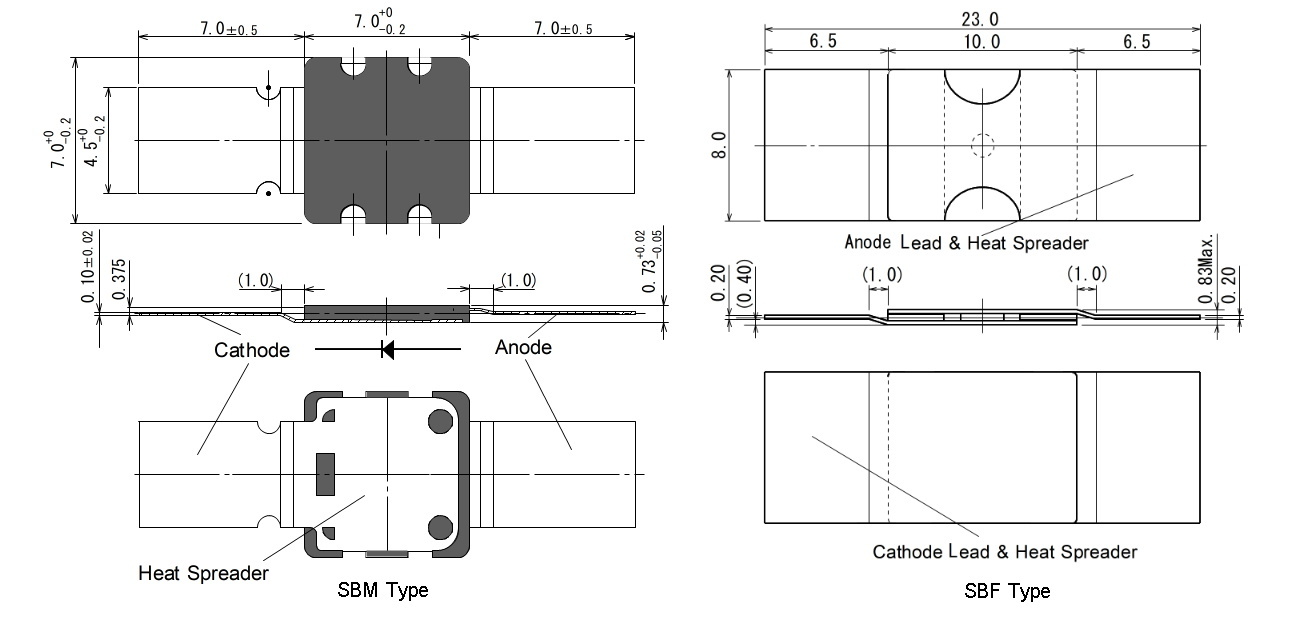

Style SBM & SBF (Unit：mm)
Style SBM & SBF (Unit：mm)
　 　 　 　
In-laminate bypass diodes
In-laminate bypass diodes
